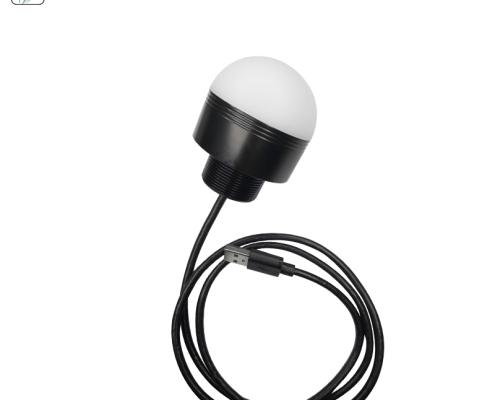

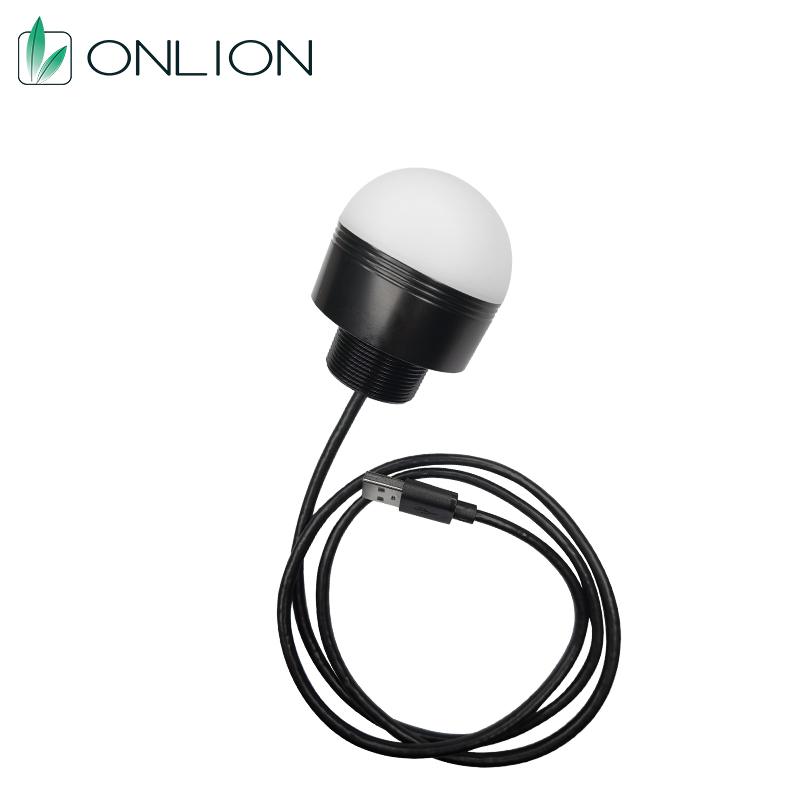

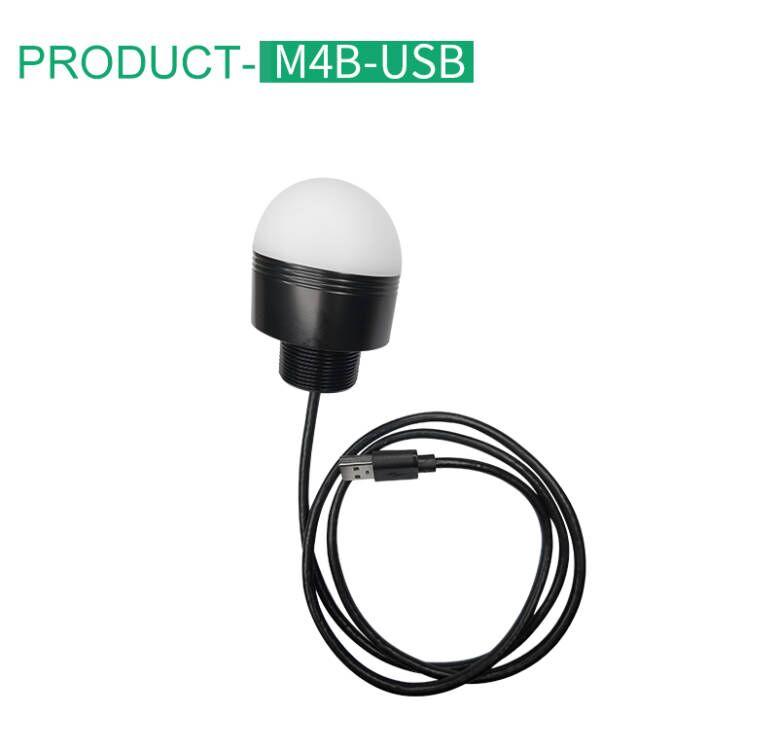

Tower Light With USB Connection ONN-M4B-USB

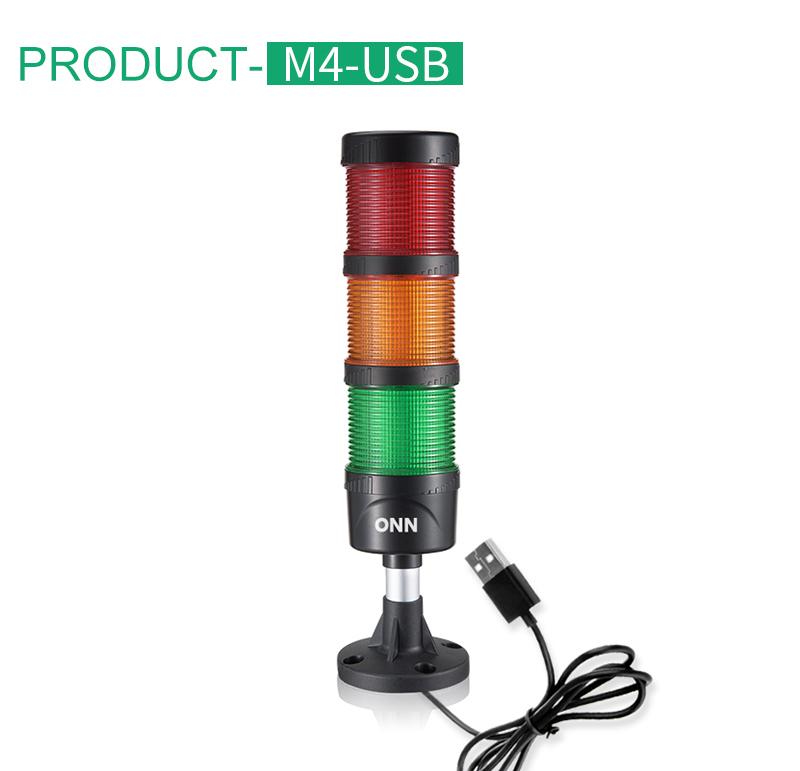

Tower Light With USB Connection ONN-M4-USB

ONN USB series signal tower is powered and simultaneously controlled by the USB interface. The USB interface ensures easy retrofitting and integration into the existing manufacturing plant and allows sending an error message without the use of a PLC. Controlling is possible via a PC or HMI. Due to the free software, the signal image can always be reprogrammed.

Tower Light With USB Connection ONN-M4B-USB

  • Preconfigured with RGB LEDs capable to generate up to 7 colors (green, blue, red, cyan, yellow, magenta and white)
  • Provide Logo customized service
  • Imported multi color led chips, high bright, high quanlity and long life time.
  • Hemisphericdesign, elegant appearance.
  • Aluminum body with PC cover makes it sturdyand durable.
  • Three colors on a single layer, easy to distinguish different signals.
  • Easy to install.
  • M12 connector wiring is optional.

Once the serial port is created, connect to it over 9600 baud and send command codes to turn on and off the red, yellow and green LEDs and enable/disable the buzzer. There’s also a blink command, so you don’t have to continuously turn on/off the LED to have a pulsing/blinking effect.

More details about USB signal tower, please check the link video for USB signal tower light

Share This Product

Data
  • LED Signal Tower Light
  • Voltage: DC5V
  • Color: 4 colors RYGW
  • Function:Steady / flash
  • Connect type: USB
  • Diameter: 50mm
  • Time control of on/off
  • Flash frequency (0.5s-2s)
  • Support Linux OS 32 bit & 64 bit
Structural Drawing

Order Info

① Voltage
B DC 5V USB
② Functions
B Steady (IP65)
F Steady with buzzer (IP30)
S Red flash (IP65)
C Red flash with buzzer  (IP30)
D All flash (IP65)
E All flash with buzzer  (IP30)
③Connect type
C Contact type
T NPN&PNP
④ Color
RYG Red, Yellow, Green, White
⑤ Diameter
50 50mm
