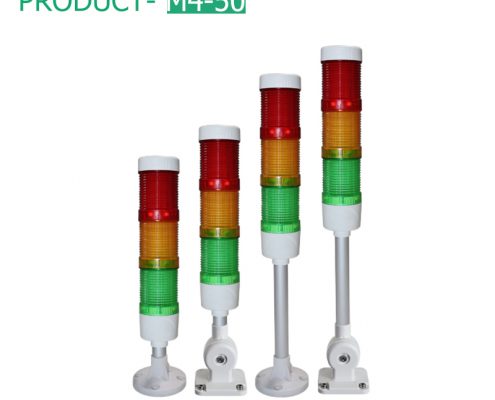

24v Equipment Indicator Light – M4-50

Its unique functionality is as brilliant as its elegant design. Particularly homogeneously and intensely illuminated signal levels show much more than other signal lights can. Individually definable colours indicate states, sequences or any other measurable events on machines and plants.

  • Maintenance-free LED technology
  • Adjustable colours through RGB LEDs
  • Intense light colours thanks to innovative light guide technology
  • Variants with IO link communication system
  • Versions with acoustic signal generator
  • Robust plastic housing
  • Prevents accumulation of dirt
  • Direct connection to machine voltage
  • Customising by means of design case
Share This Product
  • Voltage: 12V / 24 V / 100-220V
  • Voltage type: AC/DC
  • Color: Red yellow green
  • Diameter in mm: 50mm
  • Signal effect: LED permanent
  • Sound output: 85dB
  • Protection rating: IP53
  • Fixing type: Foldable type / Pole disc type
  • Connection: Directly to the power
  • Housing material: ABS
  • Pole: Aluminum
  • Service life: 50000H
Structural Drawing

Order Info

① Layer
3 three-layer
② Mounting

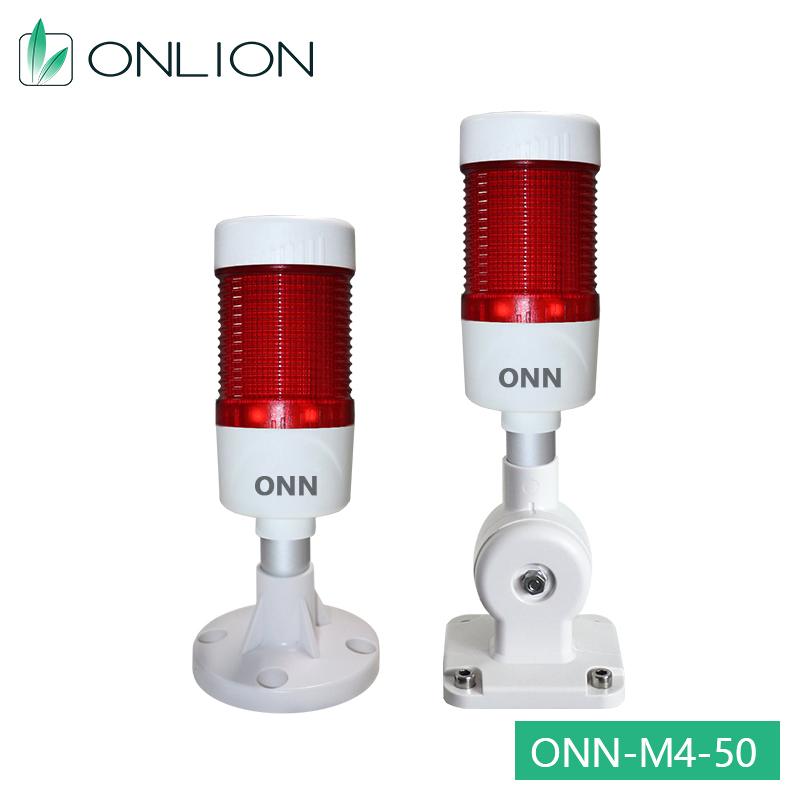

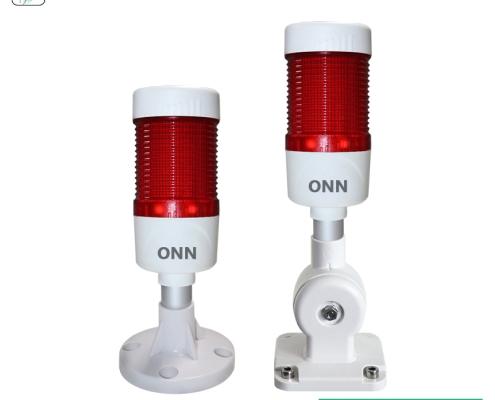

A Foldable type

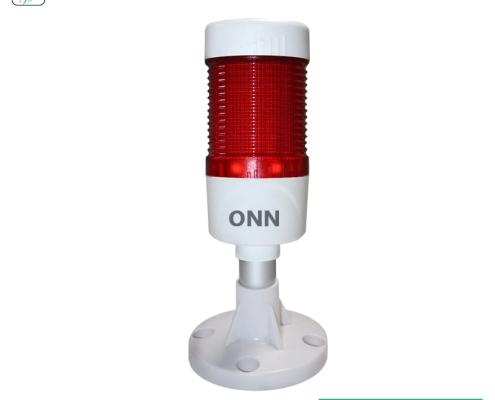

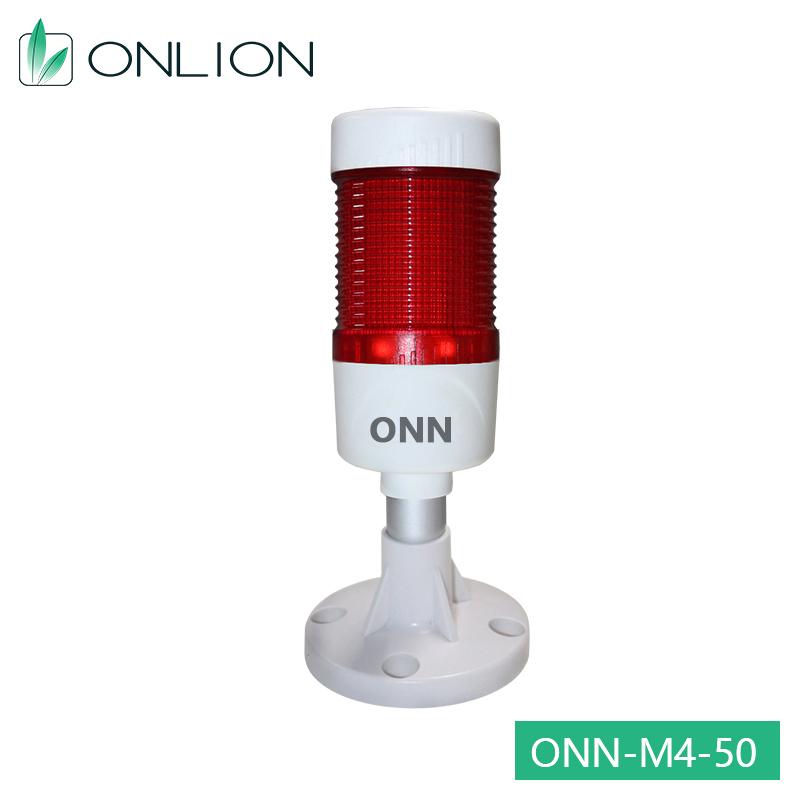

C Pole disc type

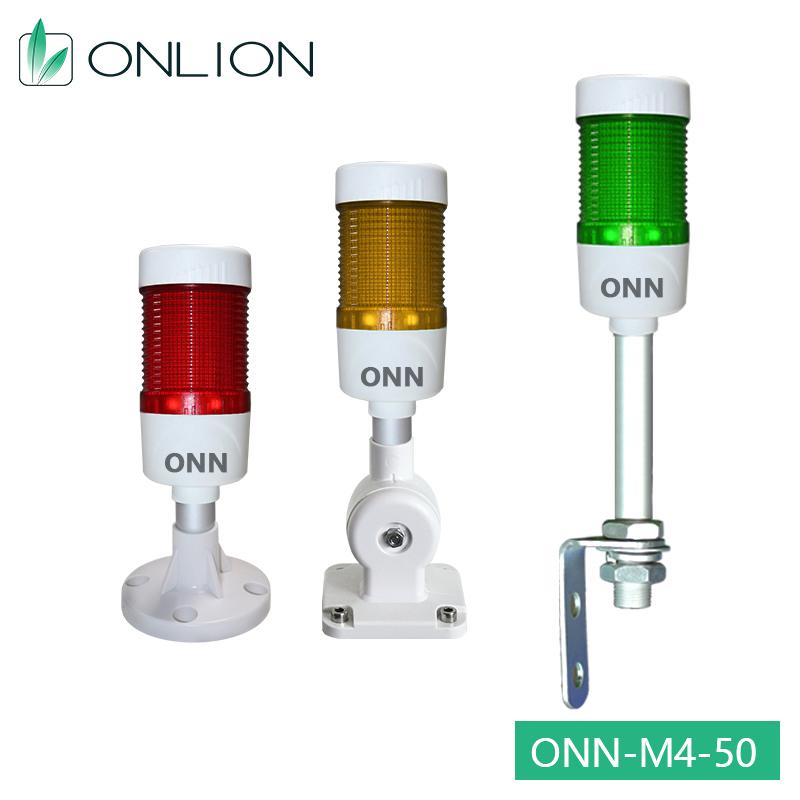

E L-shaped bracket
③ Valtage
C AC 100-240V
④ Function
B Steady
F Steady with buzzer
S Red flash
C red flash with buzzer
D All flash
E All flash with buzzer
⑤ Wire diagram
C Contact type
⑥ Color
R red
Y yellow
G green
⑦ Diameter: 50mm
