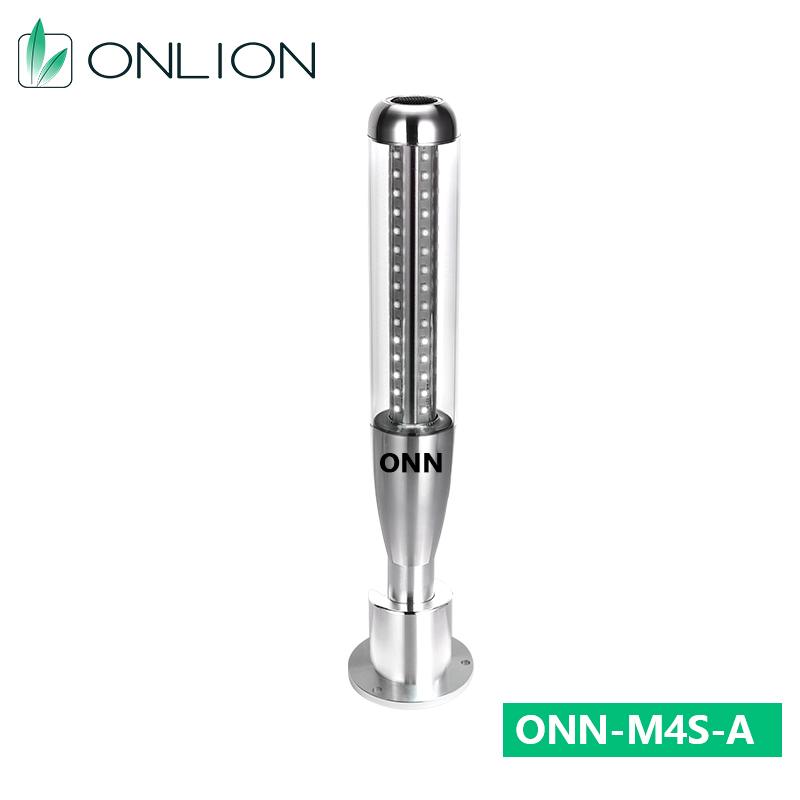

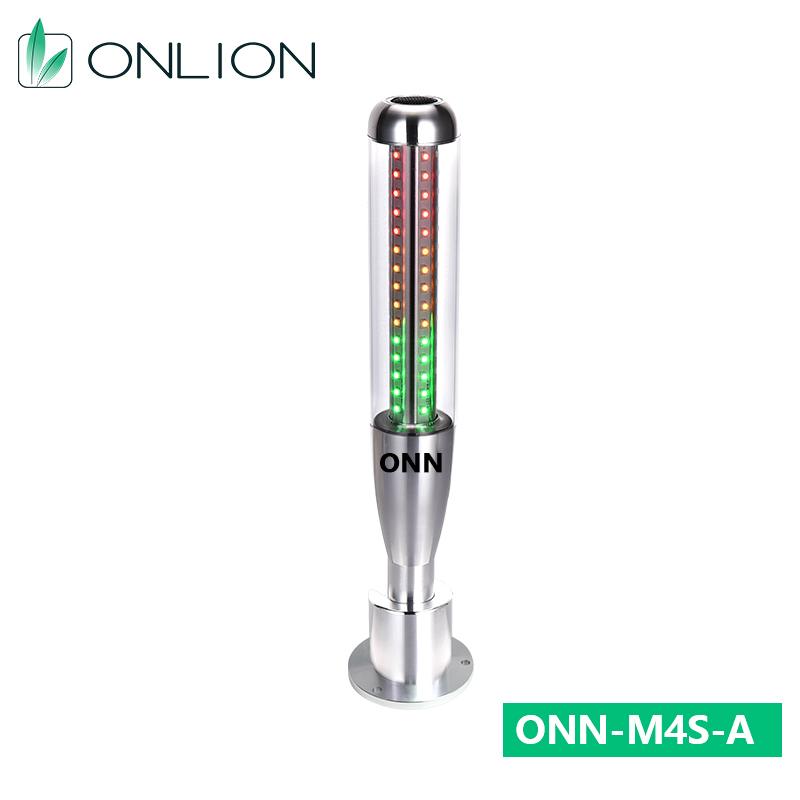

Machine Warning Light – M4S-A
Its unique functionality as brilliant as its elegant design. Particularly homogeneously and intensely illuminated signal levels show much more than other signal lights can. Individually definable colours indicate states, sequences or any other measurable events on machines and plants.

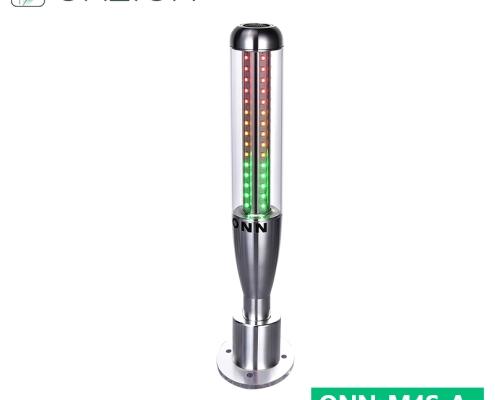

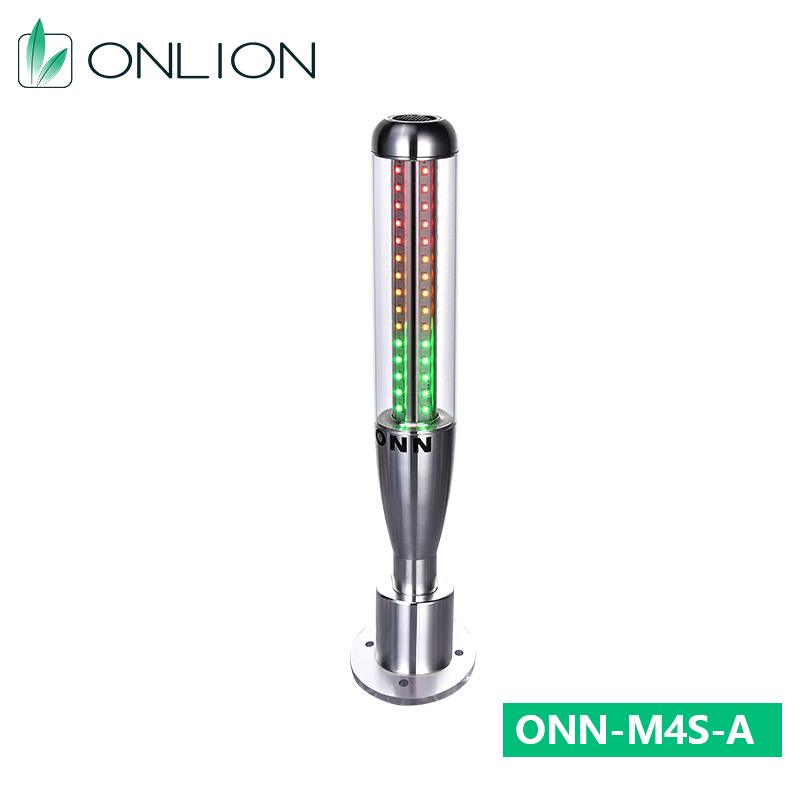

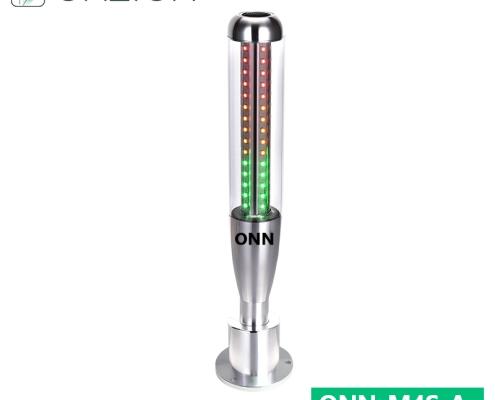

- 3 layers for red yellow green
- PC Clear Lens
- Buzzer > 85dB
- Direct connection to machine voltage
Share This Product
Product details
Spec & Drawing
Order info
| ① Shape | ||||||||||
| A | Baseball type | |||||||||
| ② Layer | ||||||||||
| 3 | 3 color | |||||||||
| ③ Voltage | ||||||||||
| B | DC 24V | |||||||||
| ④ Connect Type | ||||||||||
| C | Contact type | |||||||||
| Z | NPN | |||||||||
| B | PNP | |||||||||
| ⑤ Function | ||||||||||
| B | Steady | |||||||||
| F | Steady with buzzer | |||||||||
| S | Red Flash | |||||||||
| C | Red Flash with buzzer | |||||||||
| D | All Flash | |||||||||
| E | All Flash with buzzer | |||||||||
Download
Send Us Email
Want to ask questions, suggestions or business advice? We would be happy to contact you.
Recommended Products
Date

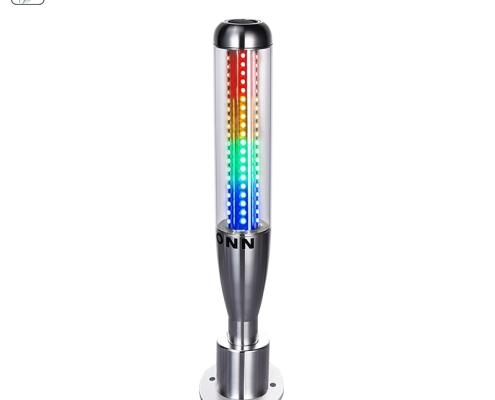

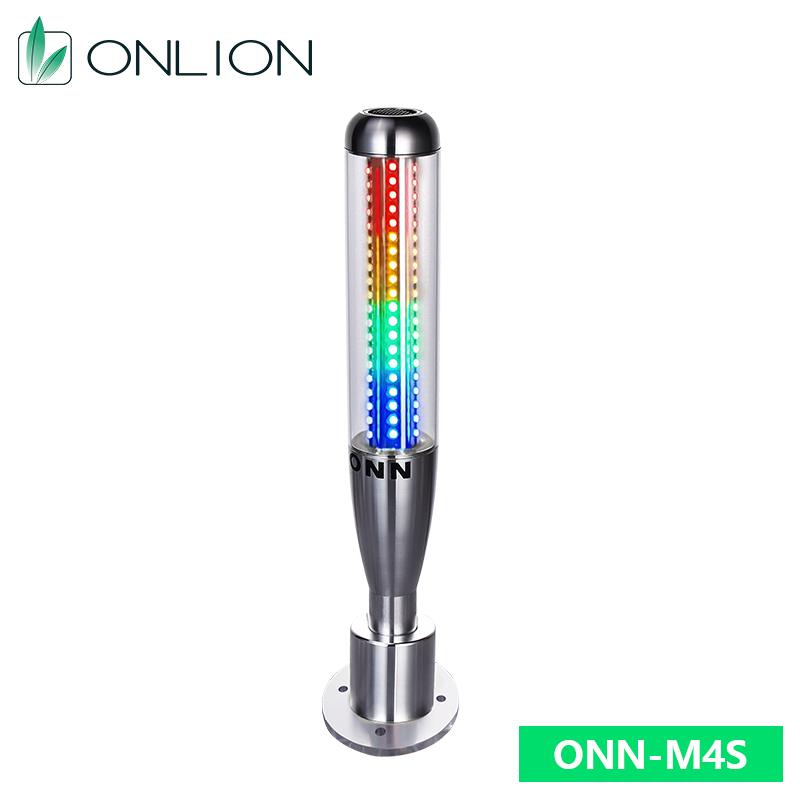

fitted with: 1-5 x LED module red-yellow-green-blue-white Energy efficiency category A+
Connected load: AC/DC 22-26 V; AC 100-240V
Power: approx. 4.5 W
System of protection: IP 54
Structural Drawing
Material: Base: PC/ABS; Tower: PC
Model
Tubular sections:
Weight (net): approx. 0.3 kg
Download
Fastening: screws
Diameter:60/70 mm
Special features: connection on the side, permanent light/blinking light via SPS
