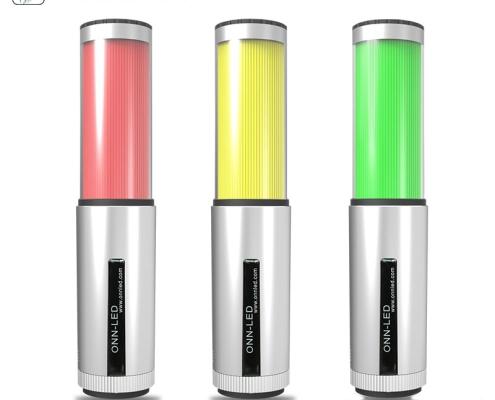

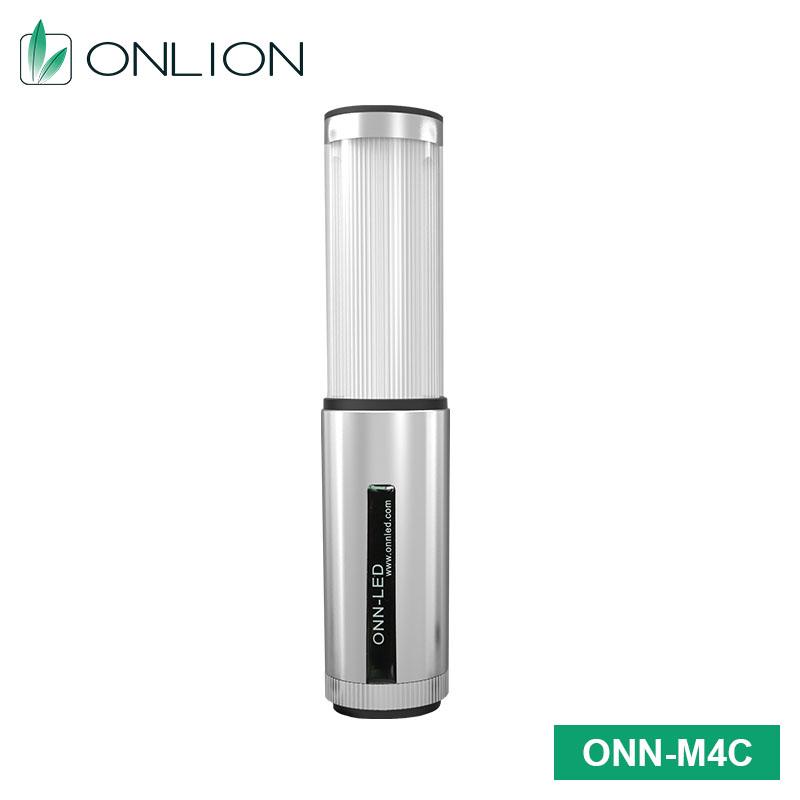

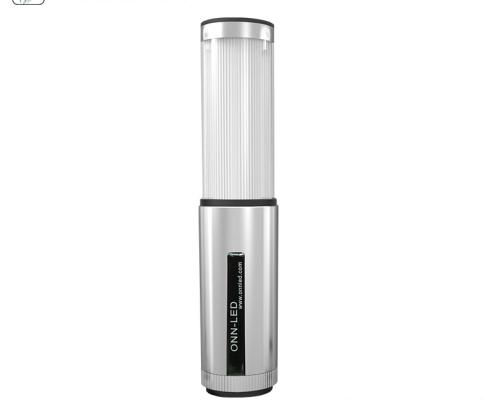

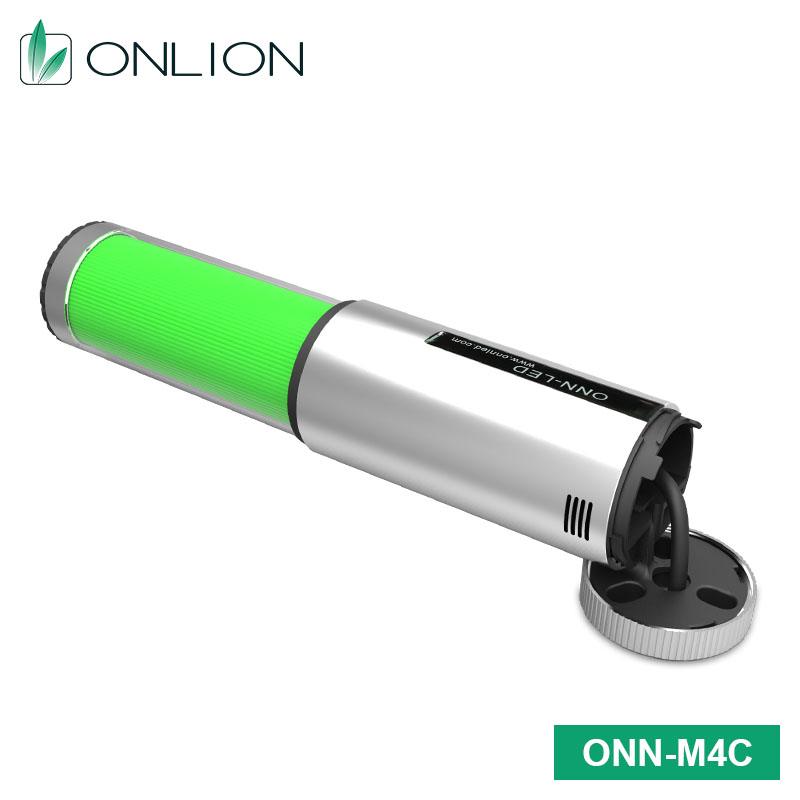

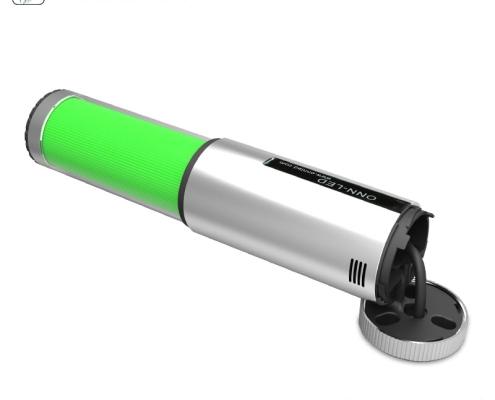

Warning light for assembly – M4C

Its unique functionality is as brilliant as its elegant design. Particularly homogeneously and intensely illuminated signal levels show much more than other signal lights can. Individually definable colours indicate states, sequences or any other measurable events on machines and plants.

  • Maintenance-free LED technology
  • Adjustable colours through RGB LEDs
  • Direct connection to machine voltage
  • Intense light colours thanks to innovative light guide technology
  • Suitable for all kinds of link communication system
  • Buzzer: 85dB
  • Robust plastic housing
  • Prevents accumulation of dirt
Share This Product
Product details

Spec & Drawing

Order info

① Layer
1 one-layer
② Mounting
A Foldable type
③ Valtage
A AC/DC 12V
B AC/DC 24V
C AC 100-240V
④ Function
B Steady
F Steady with buzzer
S Red flash
C red flash with buzzer
D All flash
E All flash with buzzer
⑤ Wire diagram
T PNP&NPN
C Contact type
⑥ Color
R red
Y yellow
G green
⑦ Diameter: 60mm
