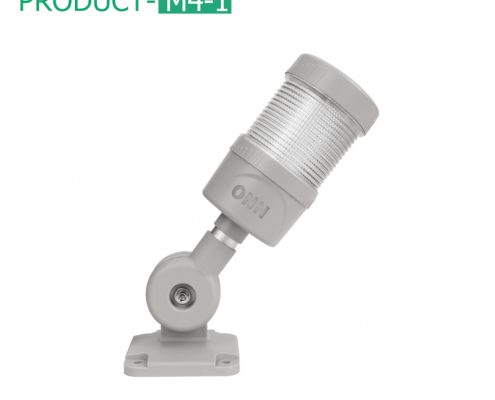

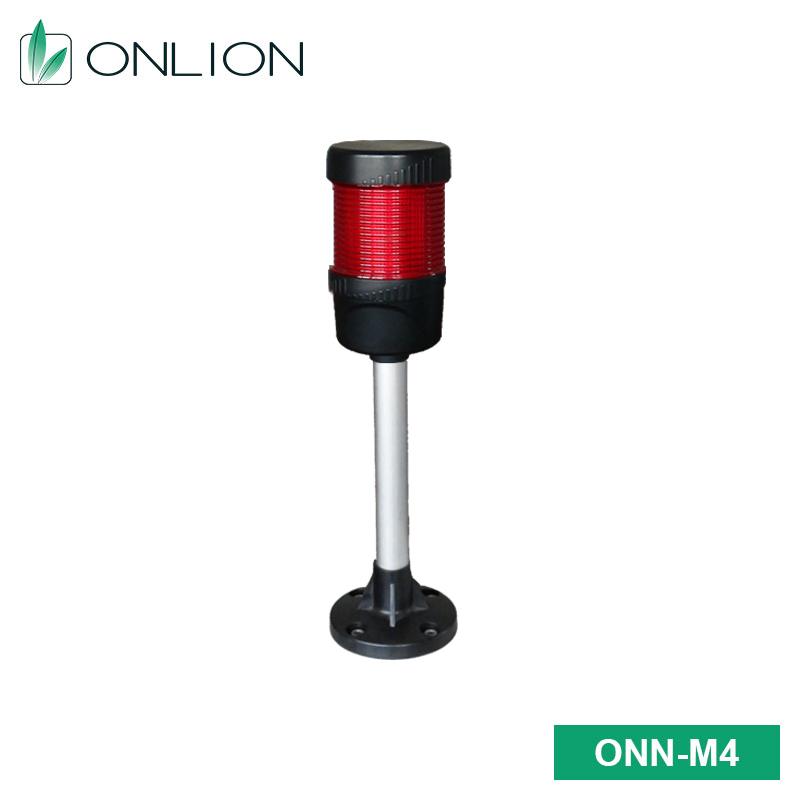

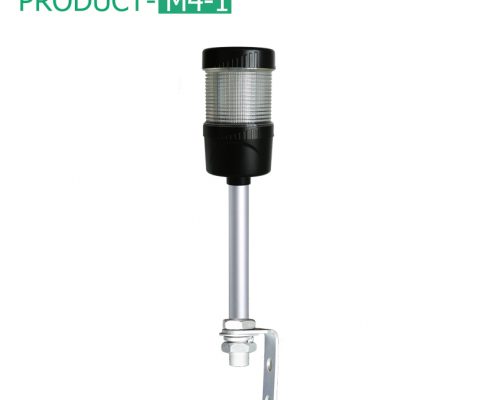

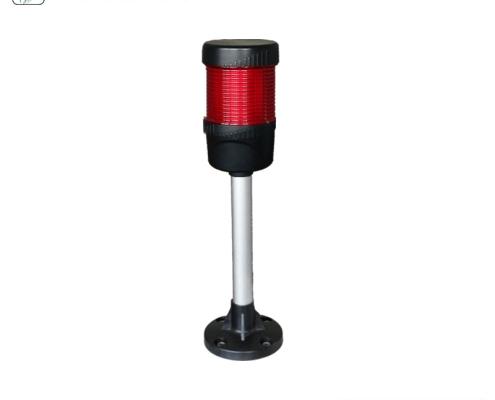

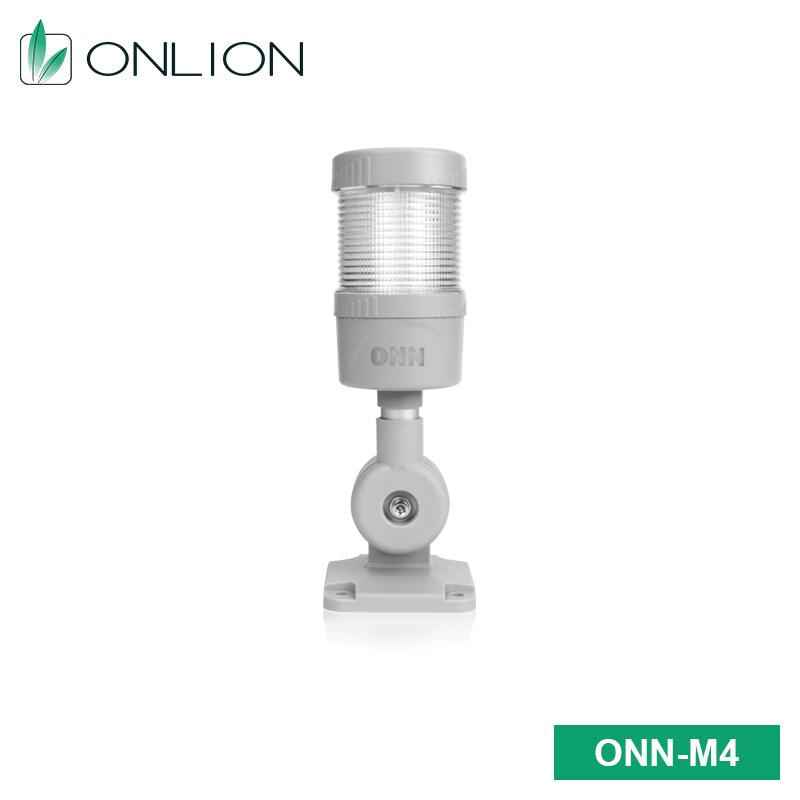

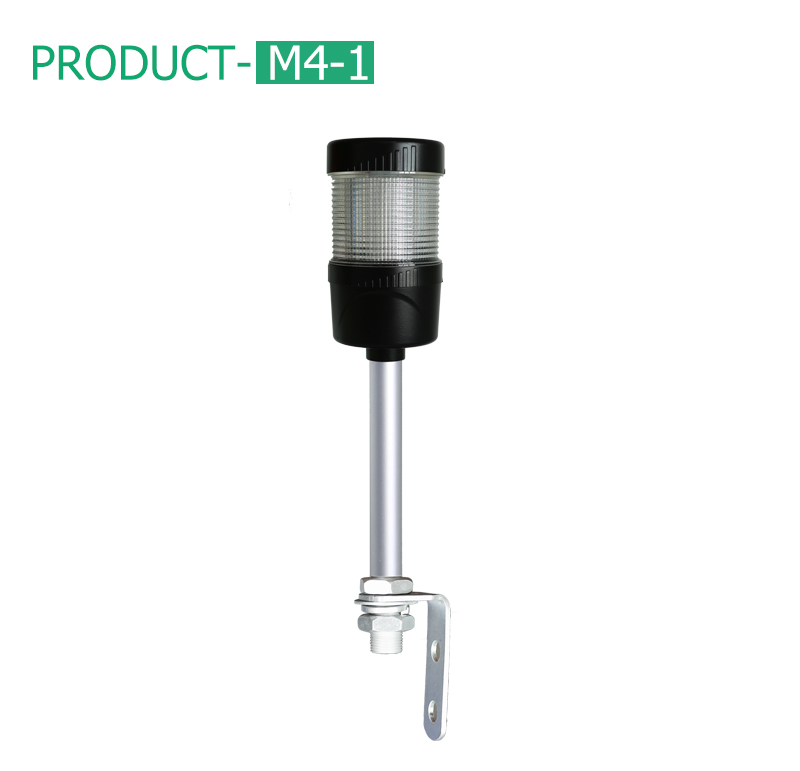

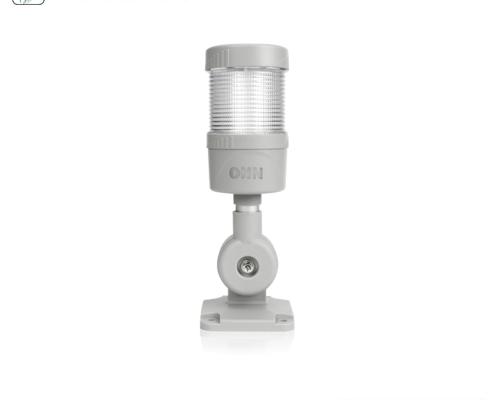

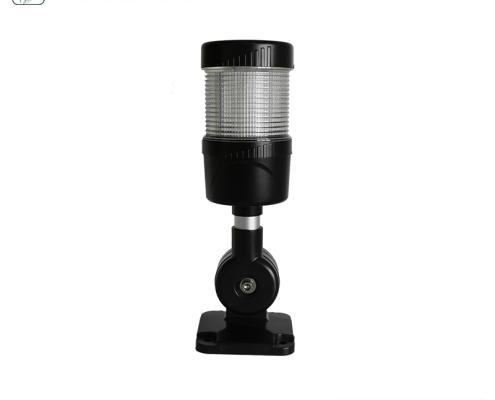

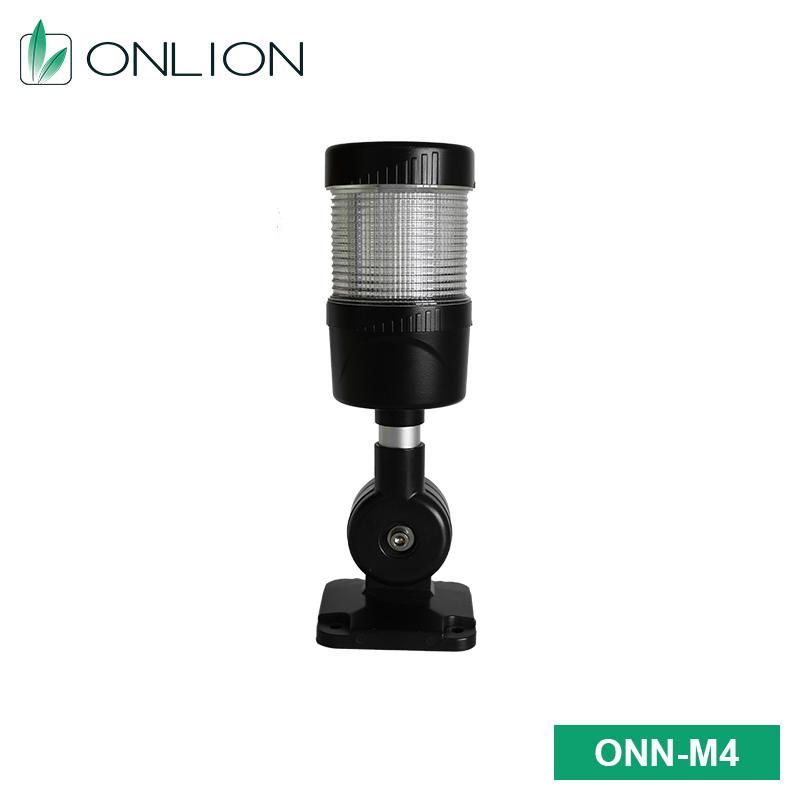

RYG Tri-color in One Layer Signal Tower LED Light ONN-M4-1

RYG Tri-color in One Layer Signal Tower LED Light ONN-M4-1

Its unique functionality is as brilliant as its elegant design. Particularly homogeneously and intensely illuminated signal levels show much more than other signal lights can. Individually definable colours indicate states, sequences or any other measurable events on machines and plants.

  • Maintenance-free LED technology
  • Adjustable colours through RGB LEDs
  • One to five signal levels
  • Intense light colours thanks to innovative light guide technology
  • Variants with IO link communication system
  • Versions with acoustic signal generator
  • Robust plastic housing
  • Prevents accumulation of dirt
  • Direct connection to machine voltage
  • Customising by means of design case
Share This Product
Date

1. Current: one color – 30mA, buzzer – 15mA
2. Flash frequency: 60-70times/min
3. Buzzer Volume: >85dB
4. IP Rating: IP53
5. Surface temperature: >60 degree
6. Lifetime: 50,000hours
7. Mounting: By screws
8. Material: Body – ABS, Lens – PC, Base – PC

Structural Drawing

Order info

① Layers
1 one layer
② Mounting options
A Foldable
C.  Pole plate
E L shape bracket
③ Voltage
A AC/DC 12V
B DC 24V
C 110~220VAC
④ Functions
B Steady
F Steady with buzzer
S Red flash
C Red flash with buzzer
D All flash
E All flash with buzzer
⑤Connect type
T PNP&NPN
C Contact type
⑥ LED color
R Red
Y Yellow
G Green
⑦Diameter
50 60/70mm
