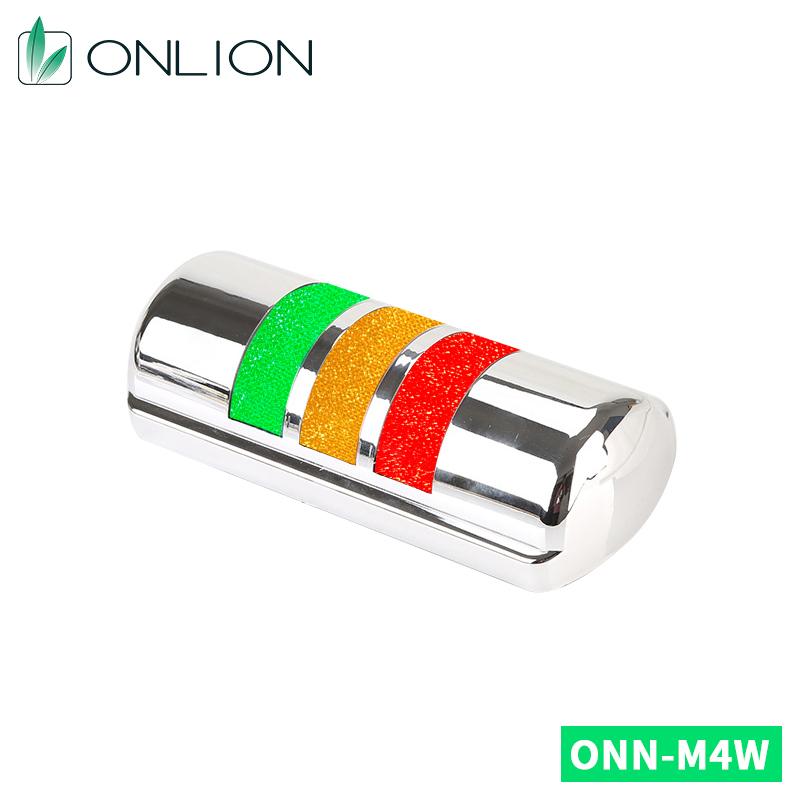

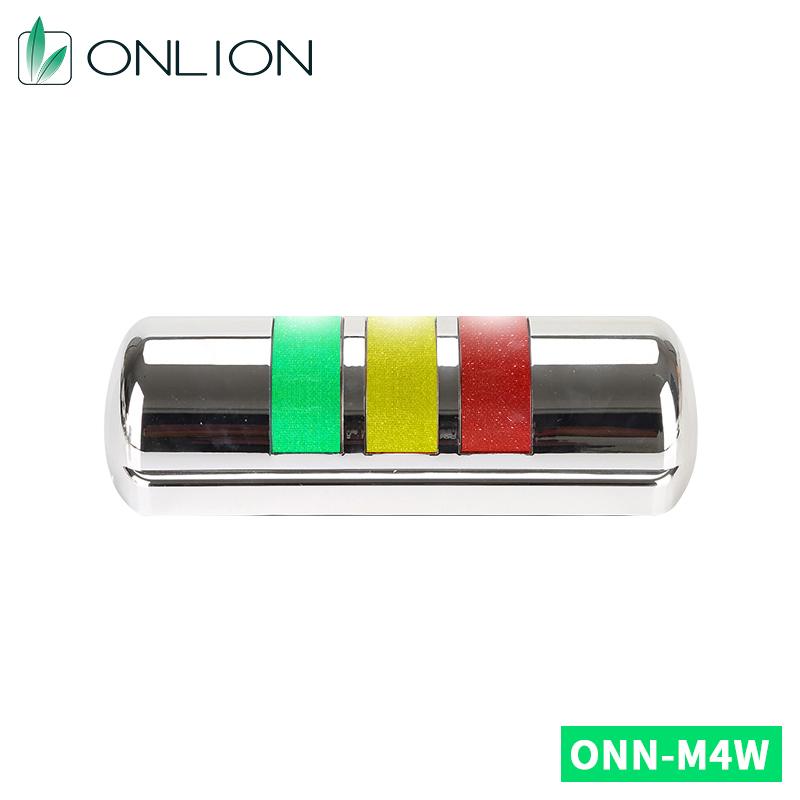

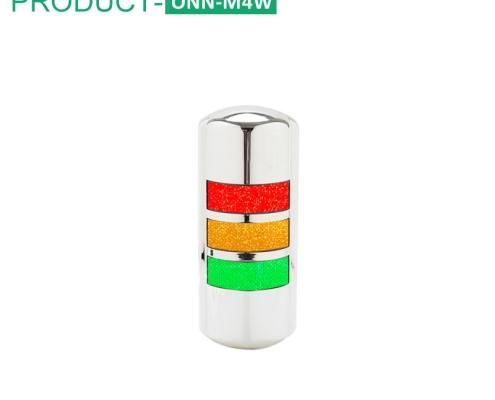

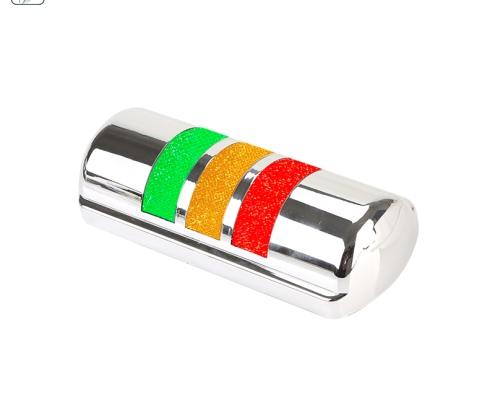

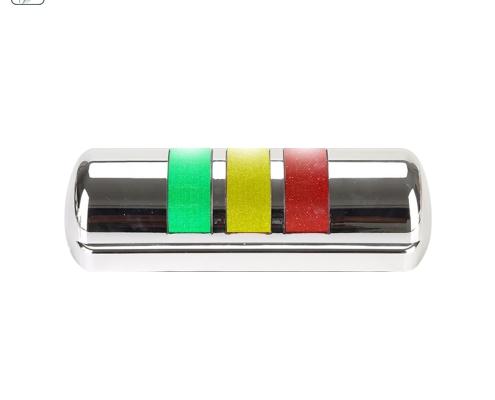

RYG 24V/220V Wall Mounted Signal Tower Stack Light ONN-M4W
RYG 24V/220V Wall Mounted Signal Tower Stack Light ONN-M4W
- Traditional design, three colors.
- ABS body with chrome plating, elegant appearance.
- Double PC lens make light soft.

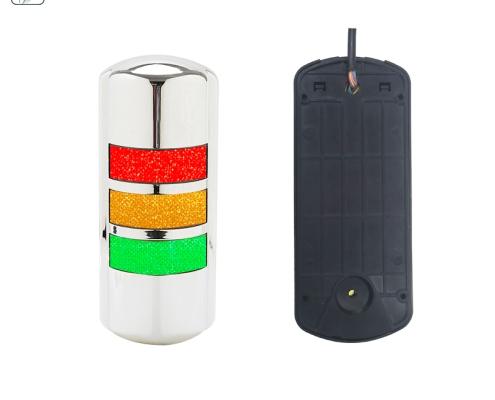

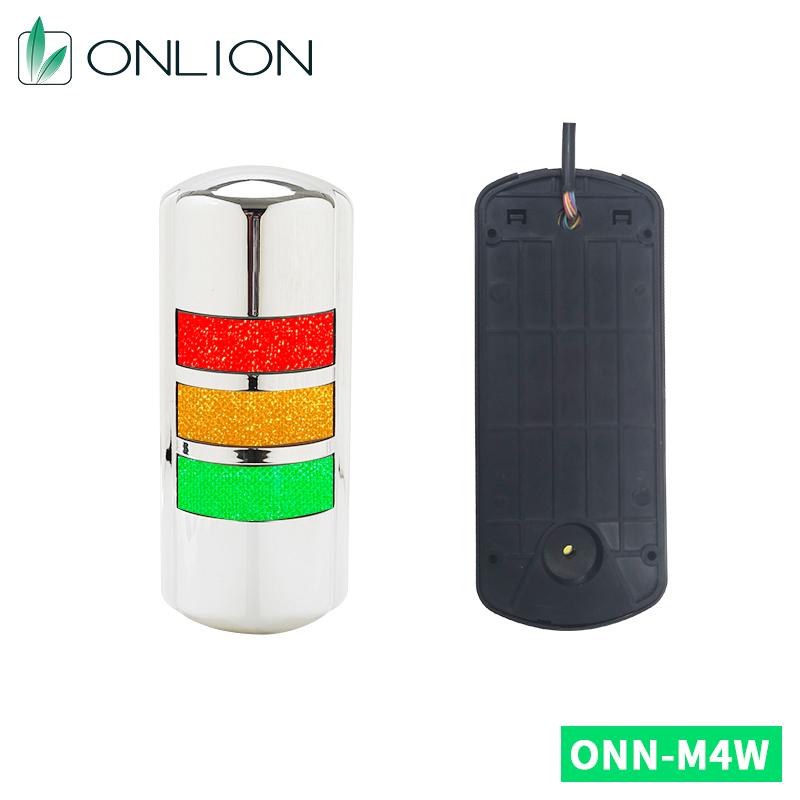

- Easy to install, hanging and screw mounting available.
Share This Product

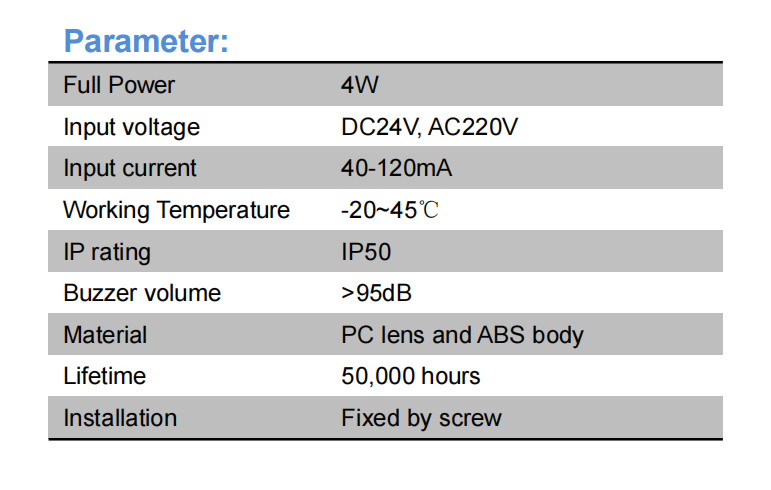

Product details
Current: one color – 50mA, buzzer – 15mA
Flash frequency: 60-70times/min
Buzzer Volume: >85dB
IP Rating: IP53
Surface temperature: Lifetime: 50,000hours
Mounting: By screws
Material: Body – ABS, Lens – PC, Base – PA+15%GF
Body color: Black / Gray / White
Spec. & Drawing

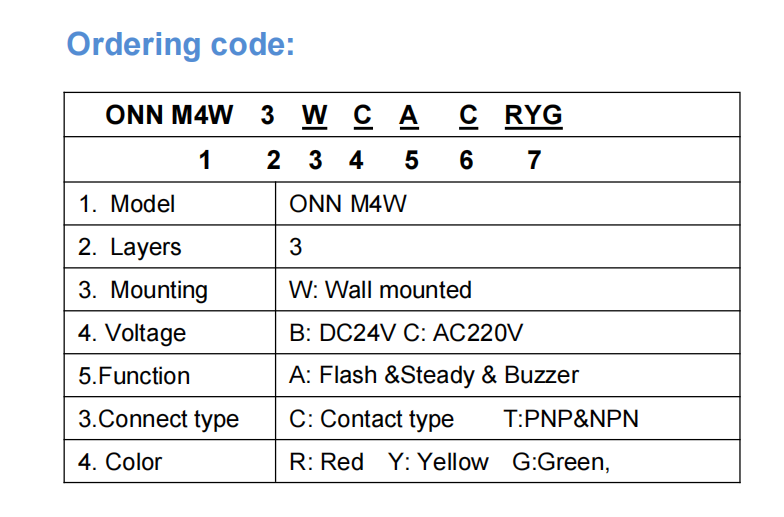

Order Info
| ① Model No. | |
| M4W | |
| ② Number of Layers | |
| 3 | Three layers |
| ③ Mounting options | |
| W | Wall mounted |
| ④ Voltage | |
| A | AC/DC 12V |
| B | DC 24V |
| C | AC100~265V 50/60HZ |
| ⑤ Functions | |
| B | Steady |
| F | Steady with buzzer |
| S | Red flash |
| C | Red flash with buzzer |
| D | All flash |
| E | All flash with buzzer |
| ⑥ Connect type | |
| T | PNP&NPN |
| C | Contact type |
| ⑦ LED color | |
| R | Red |
| Y | Yellow |
| G | Green |
