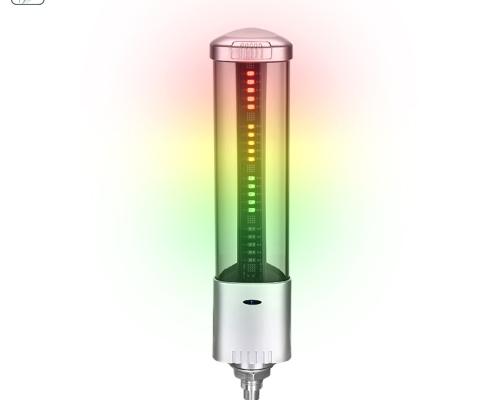

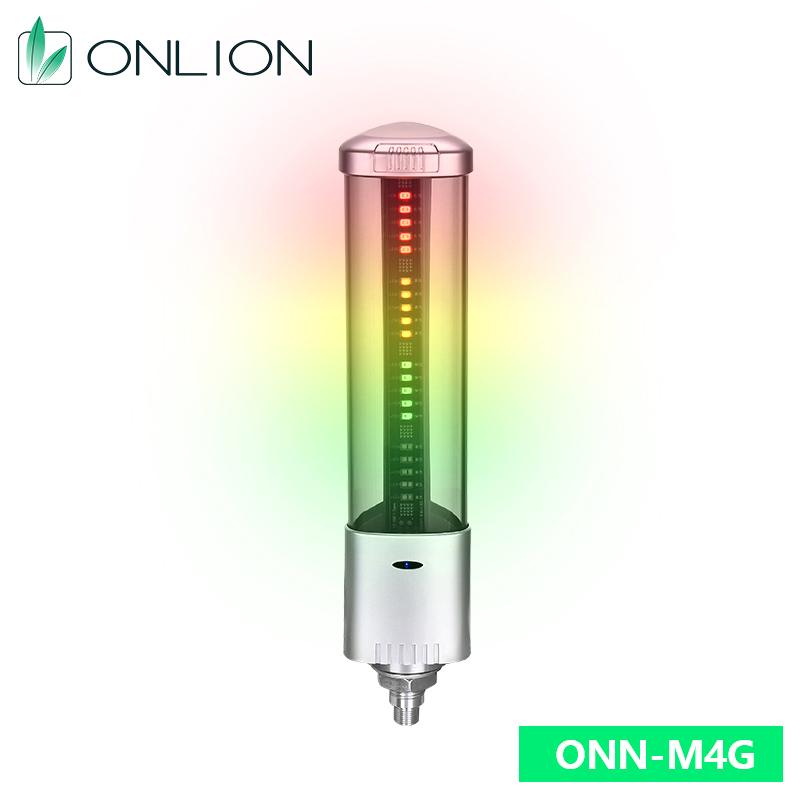

Full color signal tower light ONN-M4G

  1. Lamp can be set to be 1 to 5 layers, each layer(color)

and lighting mode (flash, steady, rotate, level, run) is programmable.

  1. ABS bodyand PC lens, elegant appearance.
  2. Easy to install, 3 kinds of brackets available to meet different mounting requests.
  3. Buzzer mode (continuous/pulse, on/off, high/low) can be set up by DIP switch.
  4. Buzzer max volume is 90 at 1 meter distance.
Share This Product
Data

Function setting up:

There is a USB interface on our lamp, which can connect the lamp and the computer through the Mini-USB2.0 data cable. After connecting to the computer, we can see a folder containing the current function files of this lamp. There are 32 files in total. You can directly download the commonly used function files from our website, select the files in the function folder you want, and replace the lamps directly. The files in the folder can get the functions you want. Or download the function editing software from our website, after editing the function, export the function file, and replace the file in the fixture folder with the exported file.

  1. Copy target files to replace the original files,Then you can get the target function.

2. Use this solftware to edit the lighting mode

Set the color for each LED chip in each moment, then set the time span. At last we export program file. When we export the program file, the file name should be the same as the orginal file name, which file you want to change. Eg: you want to change color expressing of red wire, then you have to name the export program file to be “R.RHD”

Structural Drawing
