USB signal tower light with controlled multi-tiered
With the development of technology, more and more customers request USB signal tower light, ONN developed USB series andon light including ONN-M4-USB, ONN-4T-USB, ONN-M4B-USB, ONN-M4-50, ONN-M4-50S

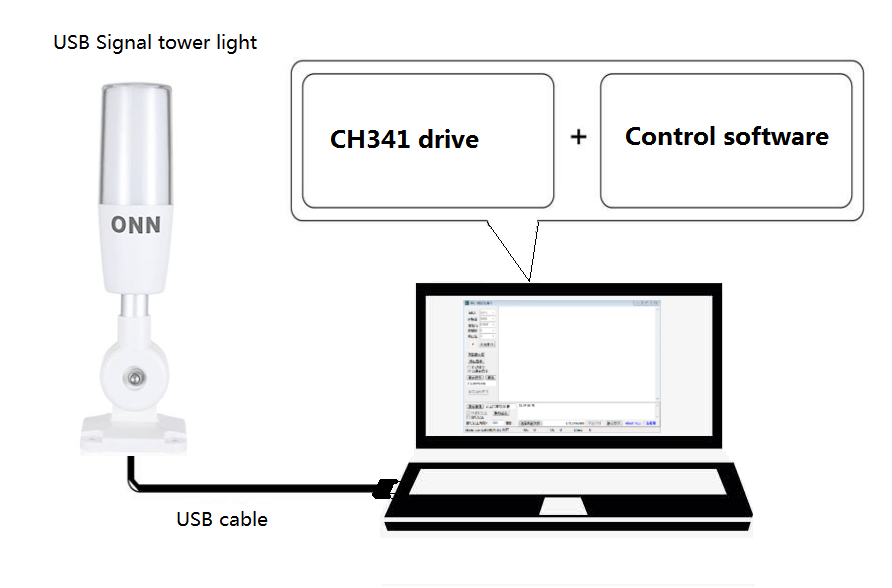

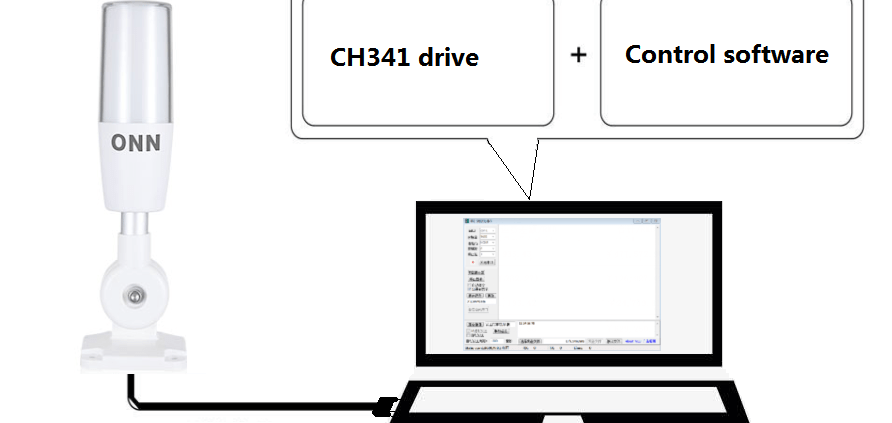

ONN USB series signal tower light is powered and simultaneously controlled by the USB interface. The USB interface ensures easy retrofitting and integration into the existing manufacturing plant and allows sending an error message without the use of a PLC. Controlling is possible via a PC or HMI. Due to the free software CH341, the signal image can always be reprogrammed.
Once the serial port is created, connect to it over 9600 baud and send command codes to turn on and off the red, yellow and green LEDs and enable/disable the buzzer. There’s also a blink command, so you don’t have to continuously turn on/off the LED to have a pulsing/blinking effect.
Please check the video of how to test the USB signal tower light through the link: USB LED tower light with 7 colors
Features & Benefits of this stack light:
- Choose up to 5 LED (red, yellow, green, blue, white) or one Multicolor LED
- Base diameter: 60mm
- 80dB Buzzer
- Powered over USB
- 5 V dc (USB bus power. Rated voltage is compliant with USB 2.0 Standard)
ONN Lighting has got certification of T U V, C E, RoHS, F C C, C C C, E R P and obtained 252 patents. Our team has rich experience for customized projects, and support O E M and O D M service,
After 12 years of development, ONN Lighting has become the international well-known manufacturer of led machine tool work lamp segment.
If you are looking for a reliable supplier, welcome to contact us, thanks.
